An aluminium beam span table can look as simple as finding the beam size, finding the span and then building to the given number.
But the headline span doesn’t tell the complete story.
A beam’s maximum published span is usually based on a specific set of assumptions, such as a particular load, support condition, spacing, deflection limit, and installation environment. A change in any of these factors might mean the maximum span no longer indicates a safe, practical design.
For builders and serious DIYers, the important skill is not finding the biggest number on a specification sheet but understanding what that number really means.
The span number is just one part of the design.
When manufacturers publish aluminium beam span tables, the figures are calculated for a defined scenario. The beam might be assumed to have a uniform load distributed evenly along its length, with supports positioned in a specific way and the beam installed under ideal conditions.
Real structures don’t always behave in such a predictable way.
A beam supporting a lightweight roof, for example, experiences a different loading pattern from one carrying a deck, balcony or elevated platform. A beam holding evenly spaced joists behaves differently from one supporting a concentrated load at post-connection structure.
The advertised span is not a universal capacity figure. It is a result of a particular calculation.
Deflection often controls before strength.
One of the biggest mistakes related to beam selection is focusing only on whether the aluminium will break.
In reality, the limiting factor is often deflection, which means how much the beam bends under load.
A beam can usually carry a load without failing, but still more than acceptable. Excessive definition can create issues such as uneven decking surfaces, cracked finishes, doors or windows that become difficult to operate, drainage issues, and uncomfortable movement underfoot.
This is the reason span tables usually include deflection limits. A beam made for a strict deflection requirement might have a shorter allowable span than the same beam calculated solely for its strength.
Point loads and Distribution Loads are Different.
A common misconception is thinking that a beam carrying a certain weight can support that load anywhere along its length.
Loads behave differently depending on how they are applied to the beam.
A distributed load is spread over an area, like joists, evenly transferring the decking’s weight across a beam. This is generally easier for a beam.
A point load concentrates force in a single location. A post, heavy equipment mount or unusual connection can create a much higher local stress than the same weight spread evenly.
A beam that performs well under a uniform load might require additional consideration when carrying concentrated forces.
Wind Exposure Changes Things
One challenge faced by outdoor aluminium structures is wind.

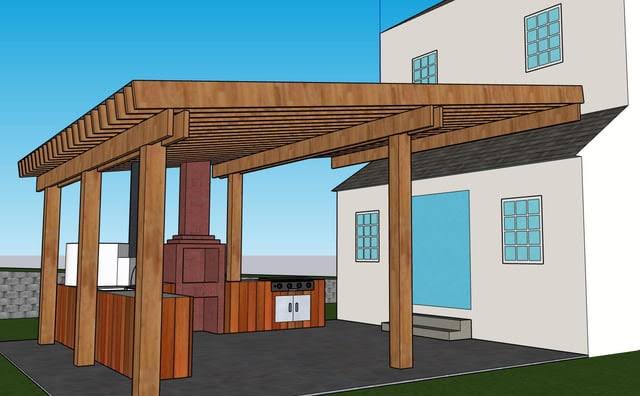

A coastal deck, pergola, balcony or elevated structure might experience uplift, sideways forces and vibration caused by exposure to wind. These forces can often influence beam sizing, connection design, bracing requirements and support details.
A beam that appears adequate under vertical loading might not be suitable when wind forces are considered.
This is especially the case when exposed locations have little protection from surrounding buildings, trees and terrain.
It’s best to keep support details in mind.
The same aluminium beams can perform dramatically differently depending on how it is supported.
A beam resting securely on supports at each end is not the same as a beam connected with a different fixing arrangement. The length of the bearing surface, connection method and whether the beam can rotate or move all affect performance.
The beam is just one component of the structure. The support and connections are part of its performance.
Read the Table, Not Just the Figure
Aluminium beams offer advantages for many applications, including corrosion resistance, low maintenance requirements, and a high strength-to-weight ratio. But their performance relies on correct specification.
A span table is not merely a shortcut. It summarises a specific engineering scenario.
The most reliable approach is to understand the assumptions behind the figures and check whether they align with the actual structure being constructed.
